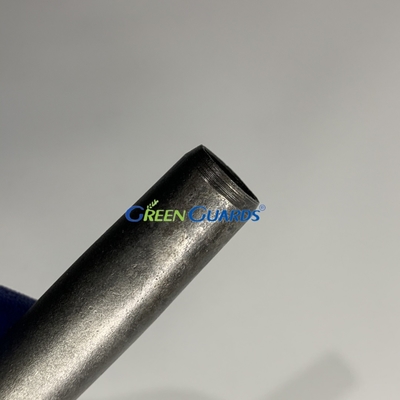

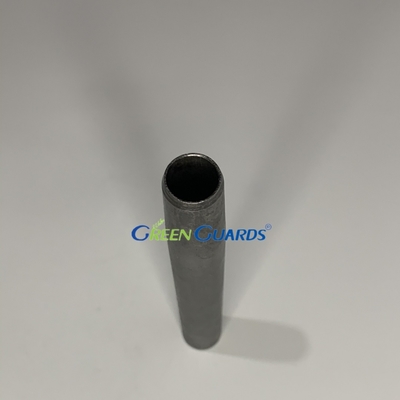

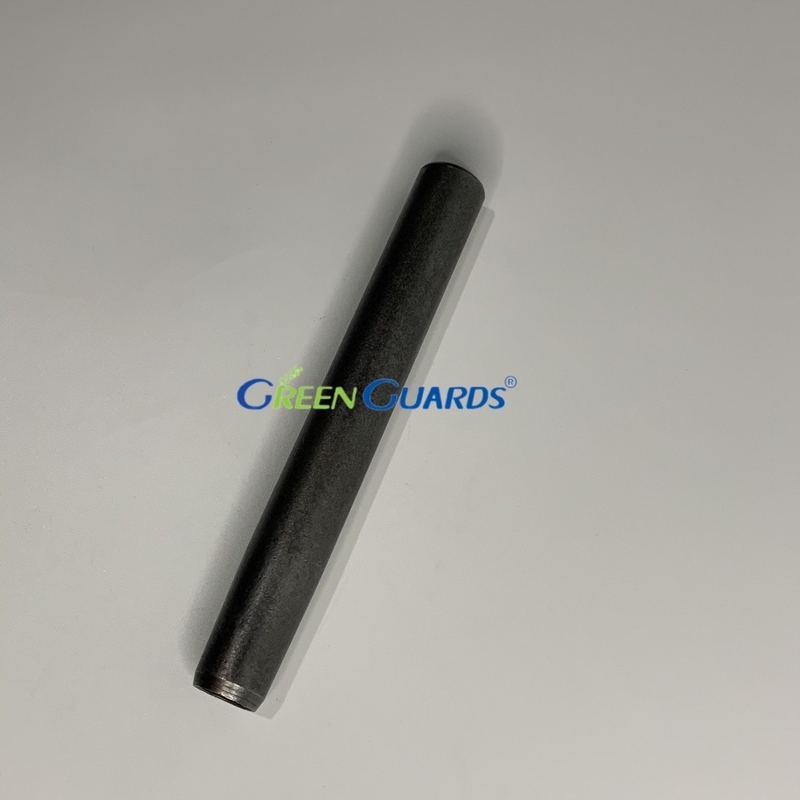

Lawn Mower Parts Top Eject Tines 7/8MTx5.75L G108-9193 Fits Toro ProCore and Fairway Aerator
Product Details:
| Place of Origin: | China |
| Brand Name: | Greenguards |
| Certification: | ISO9001:2015 |
| Model Number: | 108-9193 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Coated with anticorrosive oil, packed in carton box |
| Delivery Time: | 1-7 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, m |
| Supply Ability: | 200 |
|
Detail Information |
|||
| Product Name: | Top Eject Tines 7/8MTx5.75L G108-9193 Fits Toro ProCore And Fairway Aerator | Type: | Standard |
|---|---|---|---|
| Keywords: | Lawn Mower Parts Roller Assy Cast Iron | Package: | Standard |
| Surface Treatment: | Heat Treatment/Grinding/polishing | ||
| Highlight: | Fairway Aerator Lawn Mower Parts,7/8MTx5.75L Lawn Mower Parts,Toro ProCore Lawn Mower Parts |
||
Product Description
Lawn Mower Parts Top Eject Tines 7/8MTx5.75L G108-9193 Fits Toro ProCore and Fairway Aerator
Specification
| Product name | Top Eject Tines 7/8MTx5.75L G108-9193 |
| Place of Origin | China |
| Brand Name | Greenguards |
| Standard or Nonstandard | Standard |
| Application | Lawn machinery |
| Service | OEM Customized Services |
| Package | Carton Packing |
| OEM | Acceptable |
Replaces OEM Number
Toro:108-9193
Fits Models
Toro ProCore 440
Toro ProCore 648
Toro ProCore 648S
Toro ProCore 660
Toro ProCore 864
Toro ProCore 880
Toro ProCore 1298
Toro Fairway Aerator
More Products
0.25 To 10mm Solid Needles Aerator Tines With Thread Golf Course Mower Parts
Golf Course Equipment Part Standard Hollow Tine G59-3680 Fits Greens Aerator , ProCore
...
TORO Tines Chart:
| Hollow and Max Hollow | Max | |||||
| Mount | Length | Core Dia. (ID) | OD | Wall Thickness | Part Number | Part Number |
| 3/4" (19,0 mm) | 4.75"(120,6 mm) | .28" (7,1 mm) | .46"(11,7 mm) | .058"(1,5 mm) | 108-9128 | 108-9139 |
| 3/4" (19,0 mm) | 4.75"(120,6 mm) | .41"(10,3 mm) | .56"(14,2 mm) | .058"(1,5 mm) | 108-9129 | 108-9141 |
| 3/4" (19,0 mm) | 4.75"(120,6 mm) | 53"(13,4 mm) | .66"(16,8 mm) | .058"(1,5 mm) | 108-9130 | 108-9143 |
| 3/4" (19,0 mm) | 5.75"(146,0 mm) | .28"(7,1 mm) | .46"(11,7 mm) | .058"(1,5 mm) | 108-9132 | – |
| 3/4" (19,0 mm) | 5.75"(146,0 mm) | .41"(10,3 mm) | .56"(14,2 mm) | .058"(1,5 mm) | 108-9133 | 108-9147 |
| 3/4" (19,0 mm) | 5.75"(146,0 mm) | .53"(13,4 mm) | .66"(16,8 mm) | .058"(1,5 mm) | 108-9134 | 108-9149 |
| 3/4" (19,0 mm) | 6.50"(165,1 mm) | .28"(7,1 mm) | .46"(11,7 mm) | .058"(1,5 mm) | 108-9138 | 108-9135 |
| 3/4" (19,0 mm) | 6.50"(165,1 mm) | .41"(10,3 mm) | .56"(14,2 mm) | .058"(1,5 mm) | 108-9136 | 108-9151 |
| 3/4" (19,0 mm) | 6.50"(165,1 mm) | .53"(13,4 mm) | .66"(16,8 mm) | .058"(1,5 mm) | 108-9137 | – |
| 7/8" (22,2 mm) | 4.75"(120.6 mm) | .51"(13,0 mm) | .66"(16,8 mm) | .058"(1,5 mm) | 108-9190 | – |
| 7/8" (22,2 mm) | 4.75"(120,6 mm) | .63(16,0 mm) | .76"(19,3 mm) | .058"(1,5 mm) | 108-9191 | – |
| 7/8" (22,2 mm) | 5.75"(146,0 mm) | .51"(13,0 mm) | .66"(16,8 mm) | .058"(1,5 mm) | 108-9192 | – |
